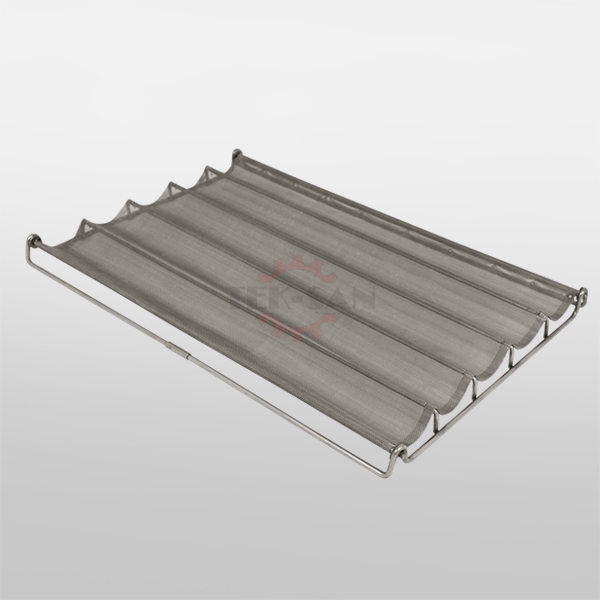

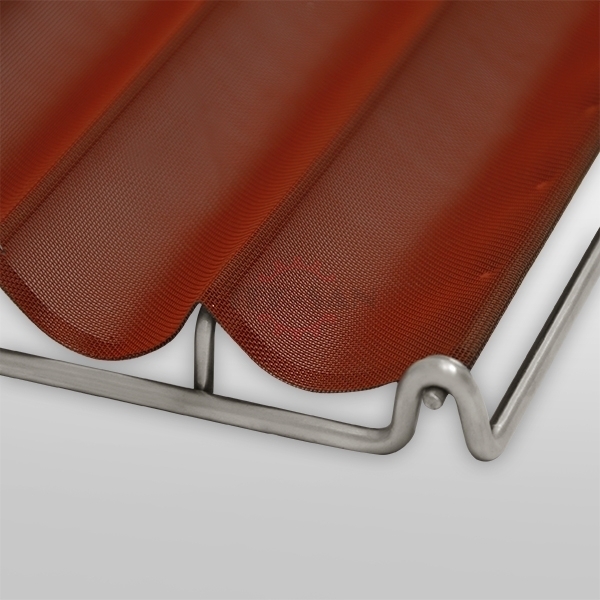

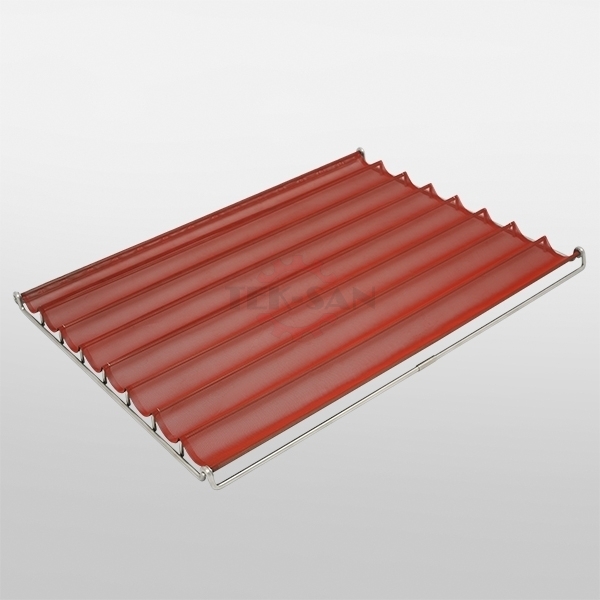

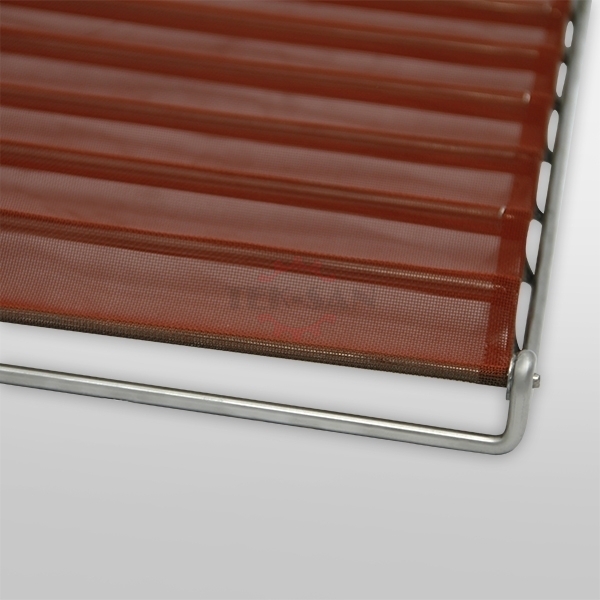

Mesh Baguette Trays

Baguette Pans provides ease of use and comfort thanks to the floating structure.

• The number of channels and dimensions can be modified according to costumer request.

• Manufactured from stainless steel or aluminum sheet material.

• Available Perforated or unperforated according to customer request.

• Should sit on the bottom of the stainless steel chassis.

• Cr-Ni mesh achieved through maximum heat efficiency.

• Made of silicone or Teflon coating process upon request.

DIMENSIONS (cm.)	MOLD 1	MOLD 2	MOLD 3	MOLD 4
40X60	5 Channel (Longitudinally)	4 Channel (Longitudinally)	3 Channel (Longitudinally)	4 Channel (Longitudinally)
40x80	5 Channel (Longitudinally)	4 Channel (Longitudinally)	3 Kanal (Longitudinally)	4 Channel (Longitudinally)
49x74	6 Channel (Longitudinally)	6 Channel (longitudinally)	4 Channel (Llongitudinally)	5 Channel (Longitudinally)
59x80	8 Channel (Longitudinally)	7 Channel (Longitudinally)	5 Kanal (Longitudinally)	6 Channel (Longitudinally)
60x90	12 Channel (Transverse)	10 Channel (Transverse)	8 Channel (Transverse)	10 Channel (Transverse)
60x100	13 Channel (Transverse)	12 Channel (Transverse)	9 Channel (Transverse)	11 Channel (Transverse)
74x98	13 Channel (Transverse)	12 Channel (Transverse)	9 Channel (Transverse)	11 Channel (Transverse)
75x104	14 Channel (Transverse)	12 Channel (Transverse)	9 Channel (Transverse)	11 Channel (Transverse)
80x100	13 Channel (Transverse)	12 Channel (Transverse)	9 Channel (Transverse)	11 Channel (Transverse)

MOLD : 1 / CHANNEL WIDTH: 70 mm - Height: 25 mm

MOLD: 2 / CHANNEL WIDTH: 75 mm - Height: 30 mm

MOLD: 3 / CHANNEL WIDTH: 85 mm - Height: 35 mm

MOLD: 4 / CHANNEL WIDTH: 70 mm - Height: 30 mm
